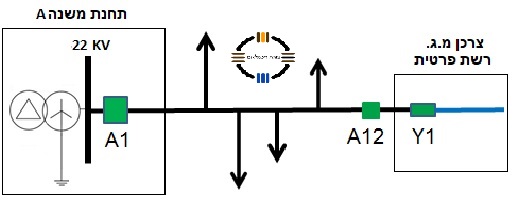

תחנת משנה A , מזינה קו מתח גבוה 22kV עילי הכולל מספר צרכנים.
הקו מוגן באמצעות ממסר הגנה ומפסק הזרם A1 .
בכניסה לצרכן מ.ג, מותקן מנתק בעומס A12 על עמוד השייך לחברת חשמל.
ההגנות של הצרכן מותקנות במפסק הזרם Y1 .
במקרה שברשת החשמל הפרטית, מתרחש קצר חד מופעי לאדמה.
תשובה 4
הגנת יתרת זרם מידית של 1Y .
הסיבה:
ע"פ סימוכין בקובץ המצורף:
עמוד 34
the available protection
functions are:
– overcurrent protection (ANSI code 50 – 51), two-phase or
three-phase depending on whether two or three current
sensors are connected
– homopolar earth fault protection (ANSI code 50N – 51N) by
means of the internal vector sum of the three phase sensors
or by means of the external earth fault toroid and two or
three current sensors
