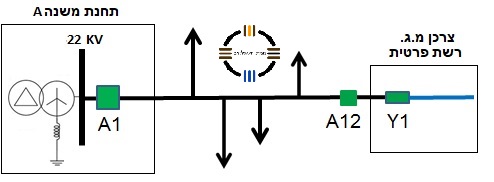

תחנת משנה A , מזינה קו מתח גבוה KV 22 עילי הכולל מספר צרכנים.
הגנות הקו מותקנות בפסק הזרם A1 .
בכניסה לצרכן מ.ג, מותקן על עמוד מנתק בעומס A12 השייך לחברת חשמל.
ההגנות של הצרכן מותקנות במפסק הזרם 1Y . איזו הגנה תפעל במקרה שברשת החשמל הפרטית מתרחש קצר דו מופעי לאדמה?
תשובה 4
הגנת יתרת זרם מידית של המפסק Y1 הסיבה:
ע"פ סימוכין בקובץ המצורף:
עמוד 34
. The available protection
functions are:
– overcurrent protection (ANSI code 50 – 51), two-phase or
three-phase depending on whether two or three current
sensors are connected
– homopolar earth fault protection (ANSI code 50N – 51N) by
means of the internal vector sum of the three phase sensors
or by means of the external earth fault toroid and two or
three current sensors
